LH

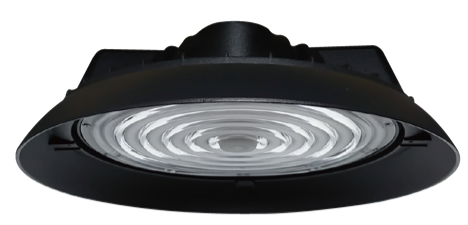

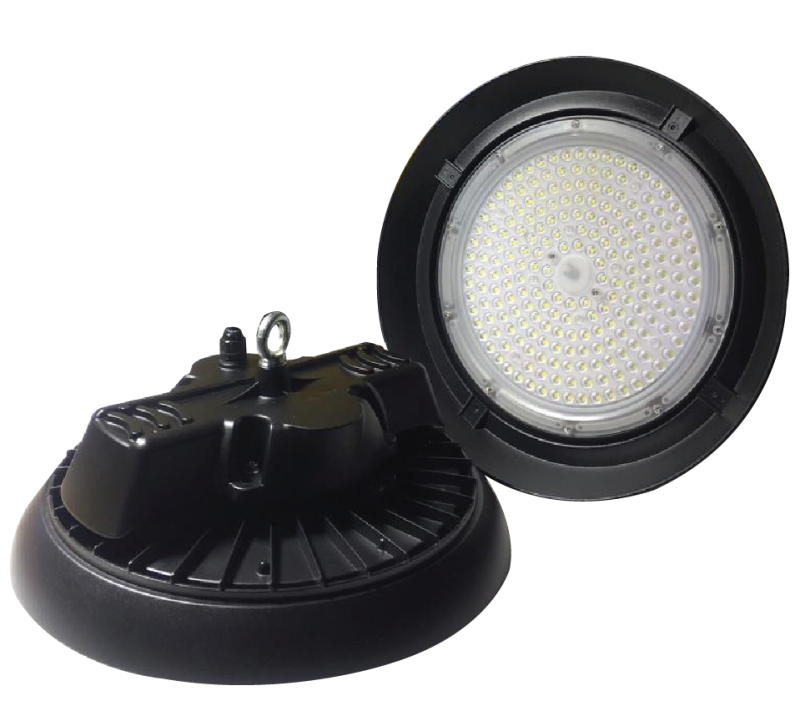

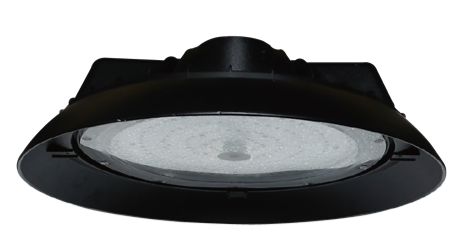

| HLP ECO FH UFO Led High Bay | |
|---|---|
|
Category: |
Industry, High Bay |
|
Power Consumption: |
100W, 150W, 200W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 4000K, 6500K |
|
Power Factor: |
>0.95 |
|
Ingress Protection: |
IP20 |
|
Warranty: |
2 Years Warranty |
|
Model |
HLP-EC-UHFHXX-100-ZZ-V |
HLP-EC-UHFHXX-150-ZZ-V |
HLP-EC-UHFHXX-200-ZZ-V
|
|
Input Voltage |
AC110-260V
|
AC110-260V
|
AC110-260V
|
|
Input Current |
0.44A |
0.66A |
0.88A |
|
Power Consumption |
100 Watts |
150 Watts |
200 Watts
|
|
Power Factor |
>0.95
|
>0.95
|
>0.95
|
|
Power Efficiency |
90%
|
90%
|
90%
|
|
Frequency |
50Hz
|
50Hz
|
50Hz
|
|
Beam Angle |
90°/120°
|
90°/120°
|
90°/120°
|
|
Typical Luminous Flux (LM) |
10,000 |
14,500 |
19,300
|
|
Luminous Efficiency (LM/W) |
100.00 |
96.67 |
96.50 |
|
Color Rendering Index (CRI) |
80 |
80 |
80 |
|
Color Temperature (CCT) |
3000K, 4000K, 6500K
|
3000K, 4000K, 6500K
|
3000K, 4000K, 6500K
|
|
Color |
Warm White(WW), Natural White(NW), White(W)
|
Warm White(WW), Natural White(NW), White(W)
|
Warm White(WW), Natural White(NW), White(W)
|
|
Model |
HLP-EC-UHFHXX-100-ZZ-V |
HLP-EC-UHFHXX-150-ZZ-V |
HLP-EC-UHFHXX-200-ZZ-V |
|
Product Length Ø (mm) |
310 |
365 |
405
|
|
Product Height (mm) |
170 |
170 |
170
|
|
Housing |
Die-casting aluminum
|
|
Lens |
Polycarbonate |
|
Body Color |
Black
|
|
Led Chip |
LED Samsung 2835
|
|
Led Driver |
HL Platinum
|
|
Ingress Protection |
IP20
|
|
Lifetime (Hours) |
20,000
|
|
Warranty (Years) |
2 |
|
Warehouse, Factory, High ceiling corridor, Multipurpose hall, Super Market
|
