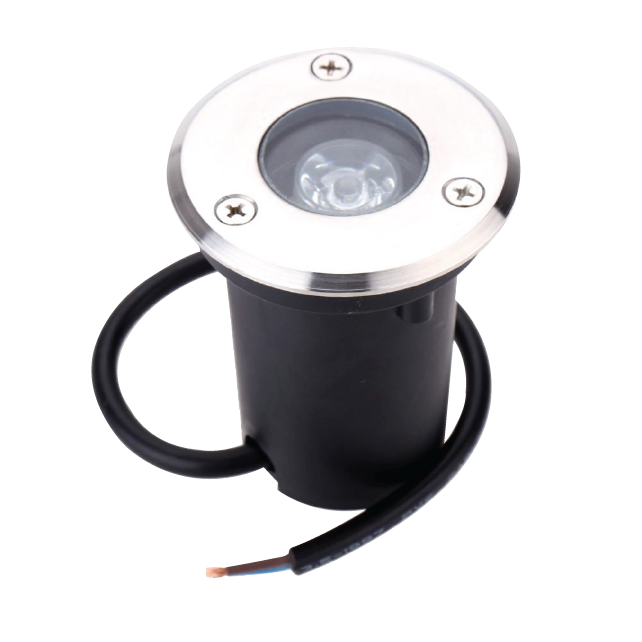

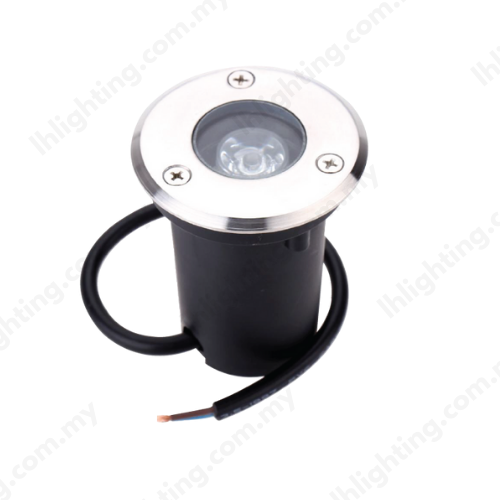

JDC Led Underground Light
|
Category: |
Underground, Commercial, Outdoor |
|
Power Consumption: |
1W, 3W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 6000K |
|
Power Factor: |
>0.5 |
|
Ingress Protection: |
IP65 |
|
Warranty: |
1 Year Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | ||
|---|---|---|
| Model | JDC-UG01-V | JDC-UG03-V |
| Input Voltage | AC240V | |
| Input Current | 0.01A | 0.03A |
| Power Consumption | 1 Watts | 3 Watts |
| Power Factor | >0.50 | |
| Power Efficiency | 90% | |
| Frequency | 50Hz | |
| Beam Angle | 30° | |
| Typical Luminous Flux (LM) | 85 | 250 |
| Luminous Efficiency (LM/W) | 85 | 83.33 |
| Color Rendering Index (CRI) | 80 | |
| Color Temperature (CCT) | 3000K, 6000K, Red, Blue, Green | |
| Color | Warm White(WW), White(W), Red(R), Blue(B), Green(G) | |
| Dimensions | ||
| Product Length Ø (mm) | 60 | 95 |
| Product Height (mm) | 75 | 85 |
| Gross Weight (Kg) | 0 | 0 |
| Material | ||
| Housing | Stainless Steel, Die-casting aluminum | |
| Lens | Glass | |
| Body Color | Sliver | |
| Led Chip | LED High Power | |
| Led Driver | JDC | |
| Ingress Protection | IP65 | |
| Longevity | ||
| Lifetime (Hours) | 10000 | |
| Warranty (Years) | 1 | |
| Application Area | ||
| Garden, Public square, Piazza , Lawn, Courtyard, Pedestrian, Streetdecoration |
||
