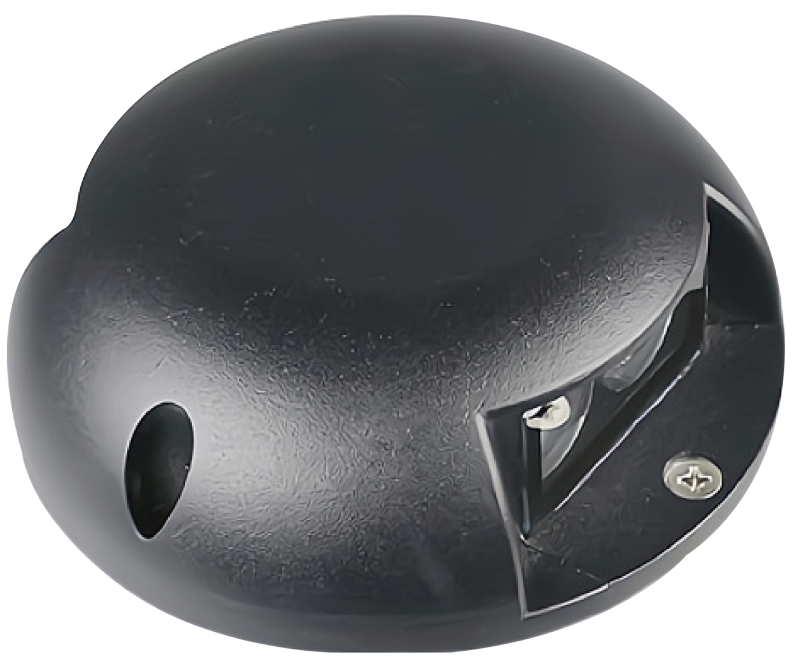

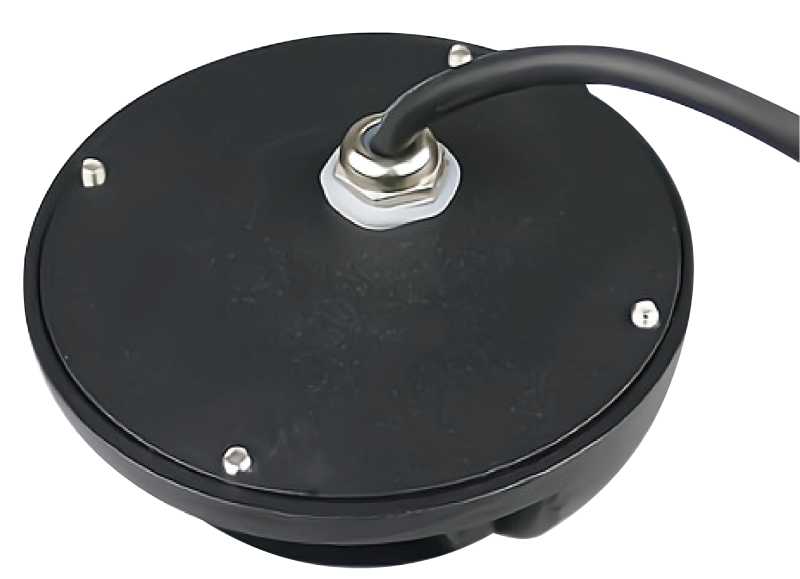

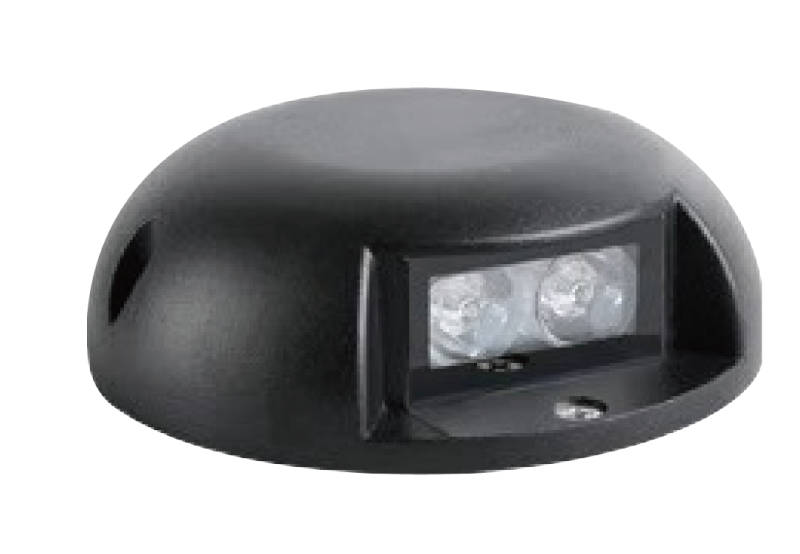

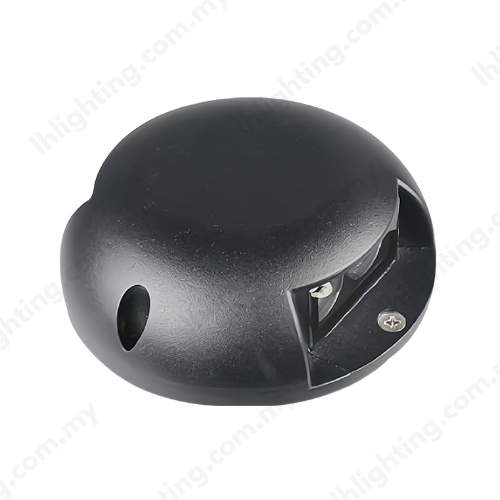

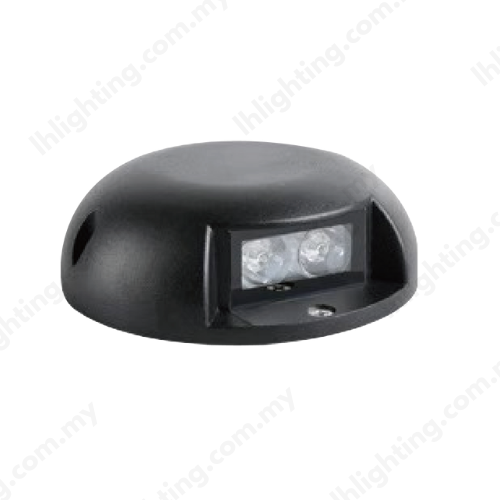

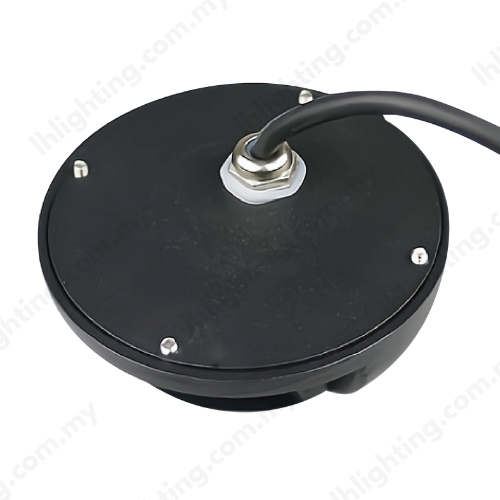

JDC Led Surface Underground Light
|
Category: |
Outdoor, Commercial, Underground |
|
Power Consumption: |
2W, 4W, 8W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 6000K |
|
Power Factor: |
>0.5 |
|
Ingress Protection: |
IP65 |
|
Warranty: |
1 Year Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | |||
|---|---|---|---|
| Model | JDC-SUG1A2-V | JDC-SUG2A4-V | JDC-SUG4A8-V |
| Input Voltage |
AC240V |
||
| Input Current | 0.02A | 0.03A | 0.07A |
| Power Consumption | 2 Watts | 4 Watts | 8 Watts |
| Power Factor | >0.50 | ||
| Power Efficiency | 90% | ||
| Frequency | 50Hz | ||
| Beam Angle | 30° | ||
| Typical Luminous Flux (LM) | 200 | 400 | 800 |
| Luminous Efficiency (LM/W) | 100 | 100 | 100 |
| Color Rendering Index (CRI) | 80 | ||
| Color Temperature (CCT) | 3000K, 6000K, Red, Blue, Green | ||
| Color | Warm White(WW), White(W), Red(R), Blue(B), Green(G) | ||
| Dimensions | |||
| Product Length Ø (mm) | 100 | 120 | 150 |
| Product Height (mm) | 35 | 40 | 45 |
| Gross Weight (Kg) | 0 | 0 | 0 |
| Material | |||
| Housing | Die-casting aluminum | ||
| Lens | Glass | ||
| Body Color | Black | ||
| Led Chip | LED High Power | ||
| Led Driver | JDC | ||
| Ingress Protection | IP65 | ||
| Longevity | |||
| Lifetime (Hours) | 10000 | ||
| Warranty (Years) | 1 | ||
| Application Area | |||
| Garden, Public square, Piazza, Lawn, Courtyard, Pedestrian streetdecoration | |||
