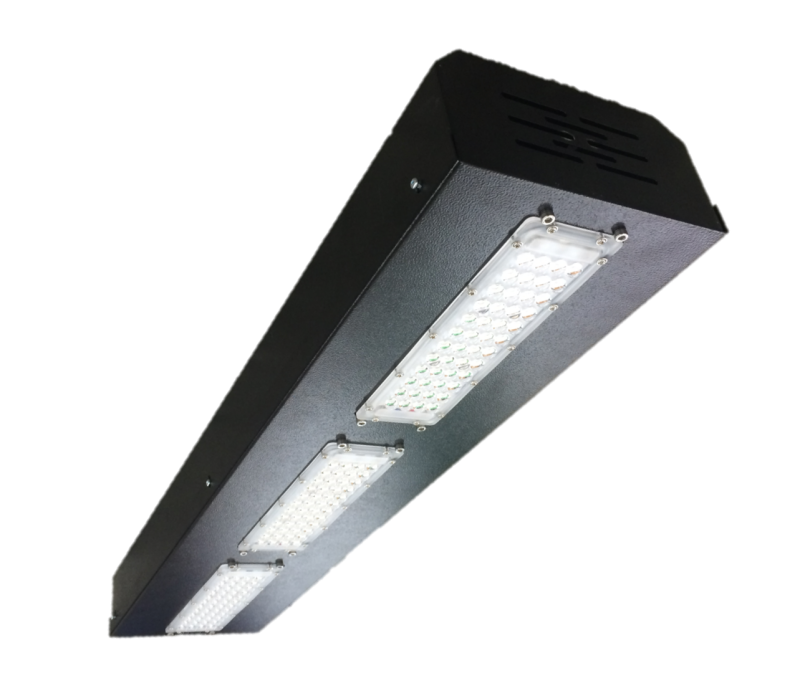

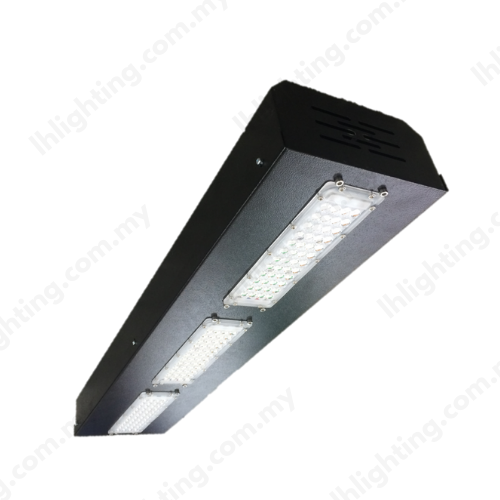

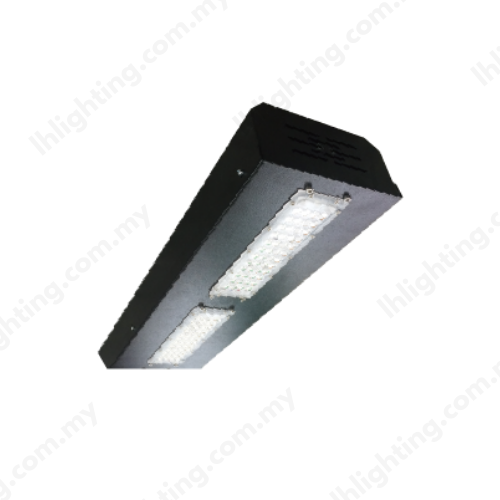

HLP Led Linear Light
|
Category: |
High Bay, Industry, Linear Light |
|
Power Consumption: |
150W, 225W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 4000K, 6500K |
|
Power Factor: |
>0.95 |
|
Ingress Protection: |
IP20 |
|
Warranty: |
2 Years Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | ||
|---|---|---|
| Model | HLP-LLALM2-150DXX-PM-V | HLP-LLALM3-225DXX-PM-V |
| Input Voltage | AC110-260V | |
| Input Current | 0.66A | 0.99A |
| Power Consumption | 150 Watts | 225 Watts |
| Power Factor | >0.95 | |
| Power Efficiency | 90% | |
| Frequency | 50Hz | |
| Beam Angle | 60° / 90° | |
| Typical Luminous Flux (LM) | 18200 | 27300 |
| Luminous Efficiency (LM/W) | 121.33 | 121.33 |
| Color Rendering Index (CRI) | 70 | |
| Color Temperature (CCT) | 3000K, 4000K, 6500K, | |
| Color | Warm White(WW), Natural White(NW), White(W) | |
| Dimensions | ||
| Product Length (mm) | 680 | 980 |
| Product Width (mm) | 203 | 203 |
| Product Height (mm) |
105 |
105 |
| Gross Weight (Kg) | 0 | 0 |
| Material | ||
| Housing | Aluminum | |
| Lens | Polycarbonate | |
| Body Color | Black | |
| Led Chip | LED Lumileds 3030 | |
| Led Driver | MOSO | |
| Ingress Protection | IP20 | |
| Longevity | ||
| Lifetime (Hours) | 20000 | |
| Warranty (Years) | 2 | |
| Application Area | ||
| Warehouse, Factory, Auditorium (halls), Production Areas | ||
