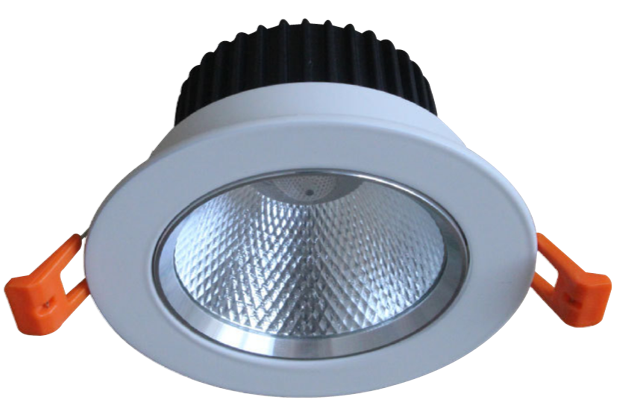

HLP Led Ceiling Spotlight
|
Category: |
Commercial, Ceiling Light, Residential |
|
Power Consumption: |
6W, 9W, 12W, 18W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 4000K, 6500K |
|
Power Factor: |
>0.9 |
|
Ingress Protection: |
IP20 |
|
Warranty: |
2 Years Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | ||||||
|---|---|---|---|---|---|---|
| Model | HLP-CSL25-6PZ-V | HLP-CSL25-9PZ-V | HLP-CSL30-9PZ-V | HLP-CSL30-12PZ-V | HLP-CSL40-12PZ-V | HLP-CSL40-18PZ-V |
| Input Voltage | AC240V | |||||
| Input Current | 0.03A | 0.04A | 0.04A | 0.06A | 0.06A | 0.08A |
| Power Consumption | 6 Watts | 9 Watts | 9 Watts | 12 Watts | 12 Watts | 18 Watts |
| Power Factor | >0.90 | |||||
| Power Efficiency | 90% | |||||
| Frequency | 50Hz | |||||
| Beam Angle | 30° | |||||
| Typical Luminous Flux (LM) | 450 | 720 | 720 | 1080 | 1080 | 1620 |
| Luminous Efficiency (LM/W) | 75.00 | 80.00 | 80.00 | 90.00 | 90.00 | 90.00 |
| Color Rendering Index (CRI) | 80 | |||||
| Color Temperature (CCT) | 3000K, 4000K, 6500K | |||||
| Color | Warm White(WW), Natural White(NW), White(W) | |||||
| Dimensions | ||||||
| Product Length Ø (mm) | 85 | 85 | 110 | 110 | 138 | 138 |
| Product Height (mm) | 54 | 54 | 65 | 65 | 85 | 85 |
| Gross Weight (Kg) | 0 | 0 | 0 | 0 | 0 | 0 |
| Material | ||||||
| Housing | Die-casting aluminum | |||||
| Lens | Polycarbonate | |||||
| Body Color | White | |||||
| Led Chip | LED Samsung 2835 | |||||
| Led Driver | HL Platinum | |||||
| Ingress Protection | IP20 | |||||
| Longevity | ||||||
| Lifetime (Hours) | 20000 | |||||
| Warranty (Years) | 2 | |||||
| Application Area | ||||||
| Fair, Exhibition stand, Cabinet, Supermarket, Hotel | ||||||
