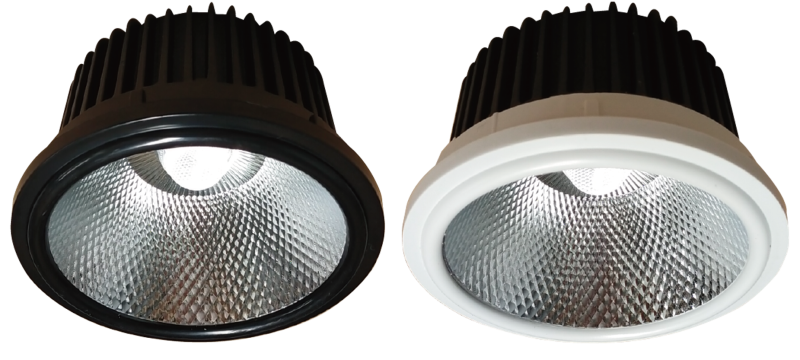

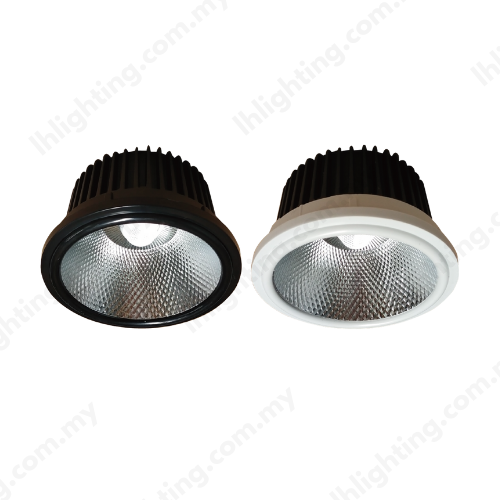

HLP Led AR111 Spotlight Module
|
Category: |
Commercial, Spotlight, Residential |
|
Power Consumption: |
12W, 18W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 4000K, 6500K |
|
Power Factor: |
>0.9 |
|
Ingress Protection: |
IP20 |
|
Warranty: |
2 Years Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | ||
|---|---|---|
| Model | HLP-AR31MX12-ZZ-V | HLP-AR31MX18-ZZ-V |
| Input Voltage | AC240V | |
| Input Current | 0.06A | 0.08A |
| Power Consumption | 12 Watts | 18 Watts |
| Power Factor | >0.90 | |
| Power Efficiency | 90% | |
| Frequency | 50Hz | |
| Beam Angle | 30° | |
| Typical Luminous Flux (LM) | 1200 | 1800 |
| Luminous Efficiency (LM/W) | 100.00 | 100.00 |
| Color Rendering Index (CRI) | 80 | |
| Color Temperature (CCT) | 3000K, 4000K, 6500K | |
| Color | Warm White(WW), Natural White(NW), White(W) | |
| Dimensions | ||
| Product Length Ø (mm) | 110 | 110 |
| Product Height (mm) | 60 | 60 |
| Gross Weight (Kg) | 0 | 0 |
| Material | ||
| Housing | Die-casting aluminum | |
| Lens | Polycarbonate | |
| Body Color | Black / White | |
| Led Chip | LED Samsung 2835 | |
| Led Driver | HLP | |
| Ingress Protection | IP20 | |
| Longevity | ||
| Lifetime (Hours) | 20000 | |
| Warranty (Years) | 2 | |
| Application Area | ||
| Fair, Exhibition stand, Cabinet, Supermarket, Hotel | ||
