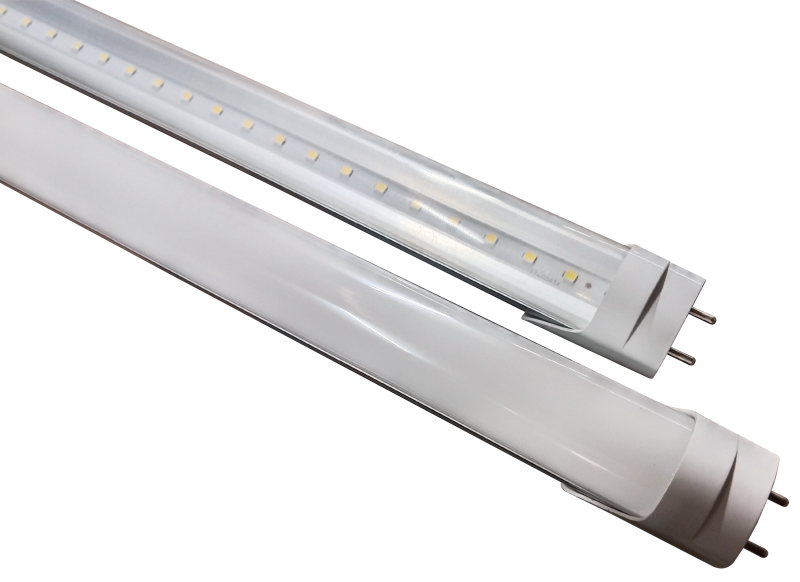

HLP ECO Led T8 Tube
|
Category: |
Commercial, T8 Tube, Industry |
|
Power Consumption: |
10W, 18W, 30W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 4000K, 6500K |
|
Power Factor: |
>0.9 |
|
Ingress Protection: |
IP20 |
|
Warranty: |
2 Years Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | ||||||
|---|---|---|---|---|---|---|
| Model | HLP-T8FR-EC-10DN-V | HLP-T8CL-EC-10DN-V | HLP-T8FR-EC-18DN-V | HLP-T8CL-EC-18DN-V | HLP-T8FR-EC-30DN-V | HLP-T8CL-EC-30DN-V |
| Input Voltage | AC110-240V | |||||
| Input Current | 0.05A | 0.05A | 0.08A | 0.08A | 0.14A | 0.14A |
| Power Consumption | 10 Watts | 10 Watts | 18 Watts | 18 Watts | 30 Watts | 30 Watts |
| Power Factor | >0.90 | |||||
| Power Efficiency | 90% | |||||
| Frequency | 50Hz | |||||
| Beam Angle | 150° | |||||
| Cover Type | Frosted | Clear | Frosted | Clear | Frosted | Clear |
| Typical Luminous Flux (LM) | 805 | 910 | 1608 | 1816 | 2750 | 3080 |
| Luminous Efficiency (LM/W) | 80.50 | 91.00 | 89.33 | 100.89 | 91.67 | 102.67 |
| Color Rendering Index (CRI) | 80 | |||||
| Color Temperature (CCT) | 3000K, 4000K, 6500K | |||||
| Color | Warm White(WW), Natural White(NW), White(W) | |||||
| Dimensions | ||||||
| Product Length (mm) | 600 | 600 | 1200 | 1200 | 1200 | 1200 |
| Product Height (mm) | 30 | 30 | 30 | 30 | 30 | 30 |
| Gross Weight (Kg) | 0 | 0 | 0 | 0 | 0 | 0 |
| Material | ||||||
| Housing | Aluminum | |||||
| Lens | Polycarbonate | |||||
| Body Color | Silver | |||||
| Led Chip | LED Samsung 2835 / Everlight 2835 | |||||
| Led Driver | HL Platinum | |||||
| Ingress Protection | IP20 | |||||
| Longevity | ||||||
| Lifetime (Hours) | 20000 | |||||
| Warranty (Years) | 2 | |||||
| Application Area | ||||||
| Car Parks, Staircases, Corridors, Walkways, Lobbies | ||||||
