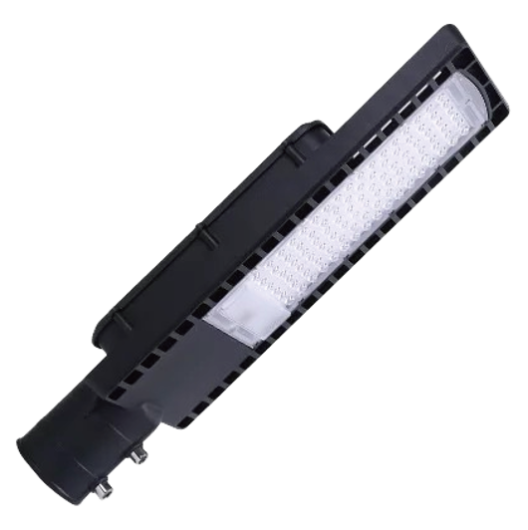

HLP CET Led Street Light
|
Category: |
Industry, Street Light, Outdoor |
|
Power Consumption: |
50W, 100W, 150W, 200W |
|
Input Voltage: |
AC 240V |
|
Color: |
3000K, 4000K, 6500K |
|
Power Factor: |
>0.95 |
|
Ingress Protection: |
IP65 |
|
Warranty: |
2 Years Warranty |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
| Performance | ||||
|---|---|---|---|---|
| Model | HLP-EC-SLCET50-PZ-V | HLP-EC-SLCET100-PZ-V | HLP-EC-SLCET150-PZ-V | HLP-EC-SLCET200-PZ-V |
| Input Voltage | AC110-260V | |||
| Input Current | 0.22A | 0.44A | 0.66A | 0.88A |
| Power Consumption | 50 Watts | 100 Watts | 150 Watts | 200 Watts |
| Power Factor | >0.95 | |||
| Power Efficiency | 90% | |||
| Frequency | 50Hz | |||
| Beam Angle | 120° X 75° | |||
| Typical Luminous Flux (LM) | 5100 | 10200 | 15350 | 20200 |
| Luminous Efficiency (LM/W) | 102.00 | 102.00 | 102.33 | 101.00 |
| Color Rendering Index (CRI) | 70 | |||
| Color Temperature (CCT) | 3000K, 4000K, 6500K | |||
| Color | Warm White(WW), Natural White(NW), White(W) | |||
| Dimensions | ||||
| Product Length (mm) | 410 | 485 | 580 | 685 |
| Product Width (mm) | 165 | 210 | 242 | 300 |
| Product Height (mm) | 70 | 80 | 80 | 80 |
| Hole Ø (mm) | 50 | 60 | 65 | 65 |
| Gross Weight (Kg) | 0 | 0 | 0 | 0 |
| Material | ||||
| Housing | Die-casting aluminum | |||
| Lens | Polycarbonate | |||
| Body Color | Black | |||
| Led Chip | LED Lumileds 3030 | |||
| Led Driver | HL Platinum | |||
| Ingress Protection | IP65 | |||
| Longevity | ||||
| Lifetime (Hours) | 20000 | |||
| Warranty (Years) | 2 | |||
| Application Area | ||||
| Road Lighting, Parking Area, Residential Road, Factory Area, Access way, Express Road | ||||
